Building Containers with Containerfiles

Building basic images with Podman

  • A container’s OCI image is a set of immutable layers stacked together with a copy-on-write logic.
  • When an image is built, all the layers are created in a precise order and then pushed to the container registry.
  • Layers are stored as as tar-based archives and image metadata.
  • These manifests are necessary to correctly reassemble the image layers (the image manifest and the image index) and to pass runtime configurations to the container engine (the image configuration).

Containerfiles and Dockerfiles

  • Container images can be built in different ways.
  • Most common approach is based on Dockerfiles.

Dockerfile

  • Main configuration file for Docker builds.
  • Plain list of actions to be executed in the build process.
  • A standard in OCI image builds and are adopted in many use cases.

Containerfiles

  • Name-change of Dockerfiles to move away from the Docker name.
  • Same syntax as Dockerfiles and are supported natively by Podman.
  • A set of build instructions that the build tool executes sequentially.
  • The cached layers have the advantage of being reusable on further builds when no changes are requested on a specific layer.
  • Intermediate containers will produce read-only layers merged by the overlay graph driver.
  • Users don’t need to manually manage the cached layers.
  • The engine automatically implements the necessary actions by creating the temporary containers, executing the actions defined by the Dockerfile instructions, and then committing.
  • By repeating the same logic for all the necessary instructions, Podman creates a new image with additional layers on top of the ones of the base image.
  • You can squash the image layers into a single one to avoid a negative impact on the overlay’s performance.
  • Not all instructions change the filesystem.
    • Only the ones that do will create a new image layer. (RUN, COPY, and ADD)
  • All the other instructions, such as CMD, produce an empty layer with metadata only and no changes in the overlay filesystem.
    • These just create temporary intermediate images and do not impact the final image filesystem.
  • Try to keep the number of RUN, COPY, and ADD instructions limited.
  • Having images cluttered with too many layers impacts the graph driver performance.
  • Containerfile instructions are commands passed to the container engine or build tool.

Containerfile Instructions:

FROM

  • Defines the initial base image used to build the container image.
  • New layers that hold the changes are cached in intermediate layers, represented by temporary images.
  • First instruction of a build stage.
  • Defines the base image used as the starting point of the build.
  • Automatically pulls image if it is not already on the host.
  • FROM <image>[:<tag>] syntax.

RUN

  • Executes some actions during the build.
  • New layers that hold the changes are cached in intermediate layers, represented by temporary images.
  • RUN: This instruction tells the engine to execute the commands passed as arguments inside a temporary container. This temporary container uses the filesystem of the image you're building. It follows the RUN <command> syntax. The invoked binary or script must exist in the base image or a previous layer.
  • Frequent practice to concatenate commands into the same RUN instruction to avoid cluttering too many layers.

COPY

  • Copies files or directories from the build working directory to the image.
  • Copies files and folders from the build working directory to the build sandbox.
  • Copied resources are persisted in the final image.
  • COPY <src>… <dest> syntax
  • Lets us define the destination user and group instead of manually changing ownership later: --chown=<user>:<group>

CMD

  • Defines the command to be executed when the container starts
  • Default argument(s) passed to the ENTRYPOINT instruction.
  • Can be a full command or a set of plain arguments to be passed to a custom script or binary set as ENTRYPOINT.
  • CMD ["command", "param1", "paramN"] (the exec form)
  • CMD ["param1, "paramN"] (the parameter form, used to pass arguments to a custom ENTRYPOINT)
  • CMD command param1 paramN (the shell form)

ADD

  • Copies files, folders, and remote URLs to the build destination target.
  • ADD <src>… <dest> syntax.
  • Supports the automatic extraction of tar files from a source directly into the target path.

ENTRYPOINT

  • The executed command in the container.
  • Receives arguments from the command line (in the form of podman run <image> <arguments>) or from the CMD instruction.
  • An ENTRYPOINT image cannot be overridden from command-line arguments.
  • ENTRYPOINT ["command", "param1", "paramN"] (also known as the exec form)
  • ENTRYPOINT command param1 paramN (the shell form)
  • Default value for ENTRYPOINT is bash -c.
    • Commands are passed as an argument to the bash process. For example, if a ps aux command is passed as an argument at runtime or in a CMD instruction, the container will execute bash -c "ps aux".
  • A frequent practice is to replace the default ENTRYPOINT command with a custom script that behaves in the same way and offers more granular control of the runtime execution.

LABEL

  • Apply custom labels to the image.
  • Labels are used as metadata at build time or runtime.
  • LABEL <key1>=<value1> … <keyN>=<valueN> syntax.

EXPOSE

  • Sets metadata about listening ports exposed by the processes running in the container.
  • EXPOSE <port>/<protocol>
  • These ports are not forwarded by default when running a container based on the image and require explicit user action.

ENV

  • Configures environment variables that will be available to the next build commands and at runtime when the container is executed.
  • ENV <key1>=<value1>… <keyN>=<valueN>
  • Environment variables can also be set inside a RUN instruction with a scope limited to the instruction itself.

VOLUME

  • Set a volume that will be created at runtime during container execution.
  • The volume will be automatically mapped by Podman inside the default volume storage directory.
  • VOLUME ["/path/to/dir"]
  • VOLUME /path/to/dir

USER

  • Define the username and user group for the next RUN, CMD, and ENTRYPOINT instructions when you run the image.
  • The GID value is not mandatory.
  • USER <username>:[<groupname>]
  • USER <UID>:[<GID>]

WORKDIR

  • Set the working directory during the build process.
  • Value is retained during container execution.
  • WORKDIR /path/to/workdir

ONBUILD

  • Trigger command to be executed once an image build has been completed.
  • In this way, the image can be used as a parent for a new build by calling it with the FROM instruction.
  • Purpose is to allow the execution of some final command on a child container image.
  • ONBUILD ADD . /opt/app
  • ONBUILD RUN /opt/bin/custom-build /opt/app/src

podman build

  • Root image builds are located under /var/lib/containers/storage/
  • Runs Containerfile instructions sequentially and persists the intermediate layers until the final image is committed and tagged.
  • These layers remain available as cache so they are available if the image is rebuilt.
  • Cached layers can be removed with podman image prune.
  • Can build in rootful or rootless mode.

--layers=false

  • Squash the current build layers into a single layer.
  • Rebuild the image without caching intermediate layers.
  • Reducing the number of layers can keep the image minimal in terms of overlays.
  • The downside is that you will have to rebuild the whole image for every configuration change without taking advantage of cached layers.

Example

Create a container with workarounds to run httpd as a non-root user inside of the container. Also, redirect logs to the containers stdout and stderr. Have the container expose port 8080:

Containerfile:

Documents/podman/httpd took 51s
❯ cat Containerfile
FROM registry.access.redhat.com/ubi9/ubi:latest

RUN set -euo pipefail; \
dnf upgrade -y; \
dnf install -y httpd; \
dnf clean all -y; \
rm -rf /var/cache/dnf/*

RUN set -euo pipefail; \
sed -i 's|Listen 80|Listen 8080|' /etc/httpd/conf/httpd.conf; \
sed -i 's|ErrorLog "logs/error_log"|ErrorLog /dev/stderr|' /etc/httpd/conf/httpd.conf; \
sed -i 's|CustomLog "logs/access_log" combined|CustomLog /dev/stdout combined|' /etc/httpd/conf/httpd.conf; \
chown 1001 /var/run/httpd

VOLUME /var/www/html

COPY --chmod=755 entrypoint.sh /entrypoint.sh

EXPOSE 8080

USER 1001

ENTRYPOINT ["/entrypoint.sh"]

CMD ["httpd"]

HTML:

Documents/podman/httpd
❯ echo "Hello Jupiter" > index.html

entrypoint.sh:

  • Test whether the container is executed as root.
  • Check the first CMD argument – if the argument is httpd, execute the httpd -DFOREGROUND command; otherwise, it lets you execute any other command (a shell, for example).
#!/bin/sh

set -euo pipefail

if [ $UID != 0 ];
then echo "Running as user $UID"
fi

if [ "$1" = "httpd" ];
then echo "Starting custom httpd server"
     exec $1 -DFOREGROUND
else
    echo "Starting container with custom arguments"
    exec "$@"
fi
Documents/podman/httpd
❯ podman build -t jupiterhttpd .

Inspect an image’s history and the actions that have been applied to every layer:

Documents/podman/httpd
❯ podman inspect jupiterhttpd

Run the built image:

Documents/podman/httpd
❯ podman run -d -p 8080:8080 -v index.html:/var/www/html jupiterhttpd

Verify it is running:

❯ podman ps
CONTAINER ID  IMAGE                          COMMAND     CREATED        STATUS        PORTS                   NAMES
d45e568b58b0  localhost/jupiterhttpd:latest  httpd       3 seconds ago  Up 3 seconds  0.0.0.0:8080->8080/tcp  romantic_lehmann

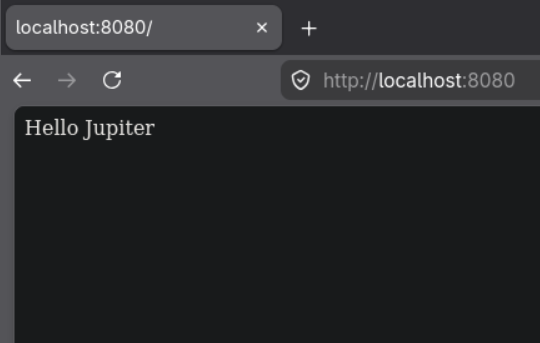

Now you can visit your web browser to see the served webpage:

The newly built image will be available in the local host cache:

❯ podman images
REPOSITORY                                   TAG           IMAGE ID      CREATED        SIZE
localhost/jupiterhttpd                       latest        0f326f00e9ec  18 hours ago   247 MB

Check out the 5 layers created:

❯ podman inspect jupiterhttpd --format '{{ .RootFS.Layers }}'
[sha256:e574af19ee33701200ab0a37463b4cb62a4e546f4122f8e63a0f7a385523cc28 sha256:d0a0a2d17dda1e7df0bdc720daa0b8e4f477ab2dbfa31a7d05091a0355bdec79 sha256:86cd418b161f7b2df84bce5e6449f743941396b6ffe2e708b79e60723d71b575 sha256:88a25ebfd30850b4a4b46b337aa63413fb9df114bd56767d49df8f3cd5b14c5e]

View the layers with podman image tree:

Documents/podman/httpd
❯ podman image tree jupiterhttpd:latest
Image ID: 0f326f00e9ec
Tags:     [localhost/jupiterhttpd:latest]
Size:     247.3MB
Image Layers
├── ID: e574af19ee33 Size: 219.5MB Top Layer of: [registry.access.redhat.com/ubi9/ubi:latest]
├── ID: eaa1dc253ed6 Size: 27.74MB
├── ID: 45ae409bda34 Size: 15.36kB
└── ID: 2cc8f660f4c5 Size: 2.048kB Top Layer of: [localhost/jupiterhttpd:latest]

Build the image with only the fedora layer, and the remaining layers squashed together:

Documents/podman/httpd
❯ podman build -t jupiterhttpdsquashed --layers=false .

View our two layers:

Documents/podman/httpd took 4s
❯ podman image tree jupiterhttpdsquashed:latest
Image ID: 28de63327259
Tags:     [localhost/jupiterhttpdsquashed:latest]
Size:     247.3MB
Image Layers
├── ID: e574af19ee33 Size: 219.5MB Top Layer of: [registry.access.redhat.com/ubi9/ubi:latest]
└── ID: 7464ff6e28f3 Size: 27.74MB Top Layer of: [localhost/jupiterhttpdsquashed:latest]
