Using Modules for Troubleshooting and Testing

Here are some common modules to help you troubleshoot:

debug: View the values of variables. uri: Test responses from a URL. And is useful for API calls. fail: Uses when to determine when a module should fail. script: Execute a shell script on the target host. stat: Gather status information on a file. assert: Test whether an expected result is present. Fails if not.

debug Module

Sometimes you need to be sure of a variable value at a certain point in a playbook.

Arguments

msg: Used to print a message. var: Used to print the value of a variable. Does not need curly brackets to reference variable.

debug:
  var: ansible_facts

uri Module

The uri module is used to verify connectivity to a web server through http or https.

uri:
  url: http://somesite.com

Show result of the command:

uri:
  url: http://somesite.com
  return_content: yes

Show the status code returned by a site:

uri:
  url: http://somesite.com
  status_code: 200
---
- name: test webserver access
  hosts: localhost
  become: no
  tasks:
  - name: connect to the web server
    uri:
      url: http://ansible2.example.com
      return_content: yes
    register: this
    failed_when: "’welcome’ not in this.content"

  - debug:
    var: this.content

Arguments

return_content: Gets the web server content, which can be stored as a variable using register.

You can also use uri to check accessibility or information from an API endpoint.

stat Module

The stat module is used to check a file for properties. You can use it with register, fail, and when to check the status of a file. Then perform an action depending on if the file passes or fails that check.

Listing 11-9 Using stat to Check Expected File Status

---
- name: create a file
  hosts: all
  tasks:
  - file:
      path: /tmp/statfile
      state: touch
      owner: ansible

  - name: check file status
    hosts: all
    tasks:
    - stat:
        path: /tmp/statfile
      register: stat_out
  - fail:
      msg: "/tmp/statfile file owner not as expected"
    when: stat_out.stat.pw_name != ’root’

assert Module

Used to match conditionals to perform an action. If any of the conditionals are false, the task fails.

Arguments

that: Defines a list of conditionals.

success_msg: Print message on success fail_msg: Print a message on failure

---
- hosts: localhost
  vars_prompt:
  - name: filesize
    prompt: "specify a file size in megabytes"
  tasks:
  - name: check if file size is valid
    assert:
      that:
      - "{{ (filesize | int) <= 100 }}"
      - "{{ (filesize | int) >= 1 }}"
      fail_msg: "file size must be between 0 and 100"
      success_msg: "file size is good, let\’s continue"
- name: create a file
  command: dd if=/dev/zero of=/bigfile bs=1 count={{ filesize }}

Note: vars_prompt variable type is string by default.

int comes from Ansible using Jinja2 filters.

> cat assertthat.yml
---
- name: use assert to see if vgdata exists
  hosts: all
  tasks:
  - name: check if vgdata exists
    command: vgs vgdata
    register: vg_result
    ignore_errors: true

  - name: show vg_result variable
    debug:
      var: vg_result

  - name: print a message
    assert:
      that:
      - vg_result.rc == 0
      fail_msg: volume group not found
      success_msg:  volume group was found

Troubleshooting Common Scenarios

Analyzing Connectivity Issues

ansible_host parameter

  • If a host resolves to multiple IP addresses, you may want to specify how exactly the remote host must be connected to.
  • In inventory: ansible5.example.com ansible_host=192.168.4.55

ping module.

  • checks for IP connectivity, accessibility of the SSH service, sudo privilege escalation, and the availability of a Python stack.
  • does not take any arguments.

Analyzing Authentication Issues

A few settings play a role in authentication on the remote host to execute tasks:

remote_user

  • Which user account to use on the managed nodes.

SSH keys need to be configured for the remote_user to enable smooth authentication.

become

  • needs to be set to true.

become_user

  • needs to be set to the root user account.

Linux sudo needs to be set up correctly.

Managing Ansible Errors and Logs

Check Mode

  • Run a playbook without actually changing anything.

–check or -C command-line argument to the ansible or ansible-playbook command.

  • Changes that would have been made are shown but not executed.

  • Not supported in all cases.

  • Problems if it is applied to conditionals, where a specific task can do its work only after a preceding task has made some changes.

  • Modules have to support it. Some don’t.

  • Modules that don’t support check mode don’t show any result while running check mode, but also they don’t make any changes.

  • Can use check_mode: yes/no with any task in a playbook.

  • The task always runs (or does not run) in check mode regardless of the use of the --check option.

--diff

  • Used with check option.
  • Reports changes to template files without actually applying them.

ansible@control rhce8-book]$ ansible-playbook listing111.yaml --check --diff

–syntax-check

  • Check playbook syntax

Understanding Output

ansible-playbook Command Output

• An indicator of the play that is started. • If not disabled, the Gathering Facts task that is executed for each play. • Each individual task, including the task name if that was specified. • The Play Recap, which summarizes the play results.

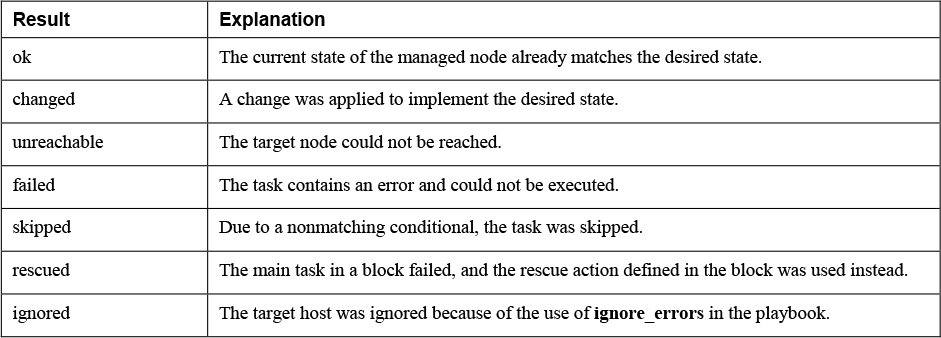

Playbook Recap Overview Image Image

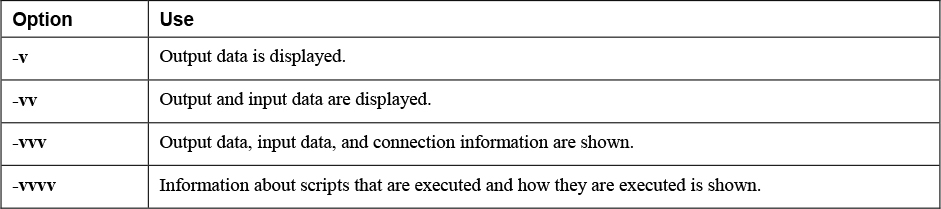

Verbosity options Image Image

Optimizing Command Output Error Formatting

stdout_callback = debug and stdout_callback = error.

  • include in ansible.cfg to make error output more readable.

Logging to Files

  • Ansible does not write anything to log files by default.
  • You can redirect std_out to a file or set the log_path parameter in ansible.cfg.
  • Can also log to the filename that is specified as the argument to the $ANSIBLE_LOG_PATH variable.
  • make sure that Linux log rotation is configured to ensure that files cannot grow beyond a specific maximum size.

Running Task by Task

ansible-playbook --step

  • Runs playbook task by task and prompt for confirmation before running the next task. ansible-playbook --start-at-task="task name"
  • Start playbook execution as a specific task.

ansible-playbook --list-tasks

  • Get a list of all tasks that have been configured. T
